Verilog补充
约 279 个字 179 行代码 预计阅读时间 4 分钟
VGA 显示图片
- Step 1: 将需要转换的图片用Python程序转换成
.coe 格式
| from PIL import Image
import numpy as np
import matplotlib.pyplot as plt
img = Image.open("Start.png")
pix = img.load()
width = img.size[0]
height = img.size[1]
f = open("Start.coe", "w")
f.write("memory_initialization_radix = 2;\n")
f.write("memory_initialization_vector = \n")
for y in range(height):
for x in range(width):
r, g, b = pix[x, y]
r_ok = r>>4
g_ok = g>>4
b_ok = b>>4
f.write("%s%s%s,\n"%('{:04b}'.format(r_ok), '{:04b}'.format(g_ok), '{:04b}'.format(b_ok),))
|
由于我们所用的VGA模块，RGB的顺序实际上是 BGR ，因此上面程序可以将 r_ok 和 b_ok 交换。但是在贪吃蛇大程序中我并没有这么做，而是手动将其反转，如: VGA_RGB = {StartPage_RGB[3:0],StartPage_RGB[7:4],StartPage_RGB[11:8]};

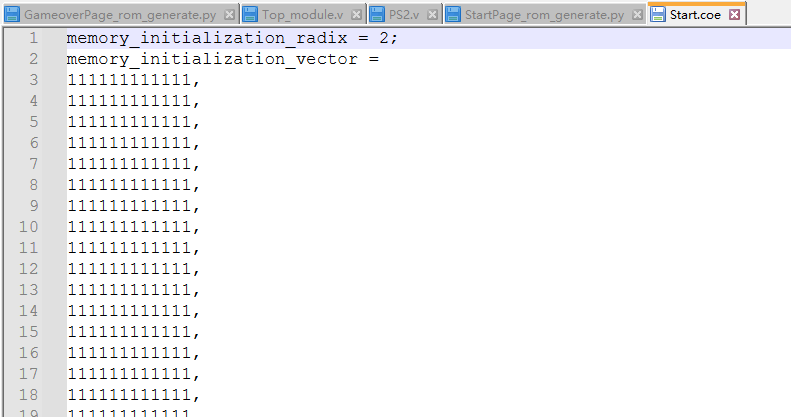

打开得到的 coe 文件，可以看到类似如下内容:
- Step 2: 创建 ROM 并载入数据

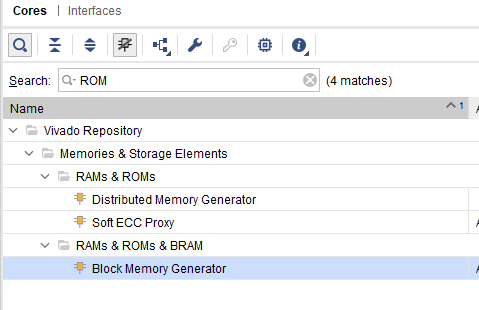

- 在IP Catalog中搜索ROM，选择 Block Memory Generator
- Basic 中选 Single Port Rom
- 按照下图填写(其中Depth大于某个数即可)，取消勾选 Primitives Output Register

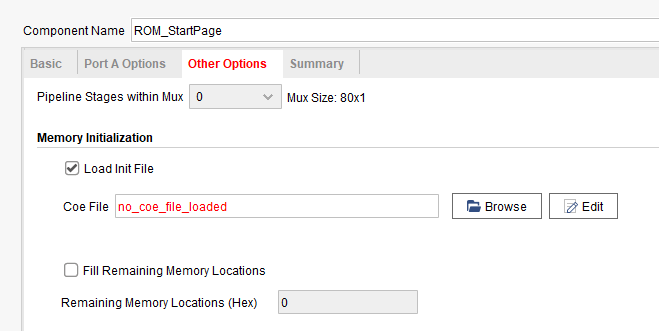

- Load Init File，选择你的coe文件
- 调用方法如下：
ROM_StartPage StartPage_unit(.clka(clk),.addra(row*640+col),.douta(StartPage_RGB),.ena(1));

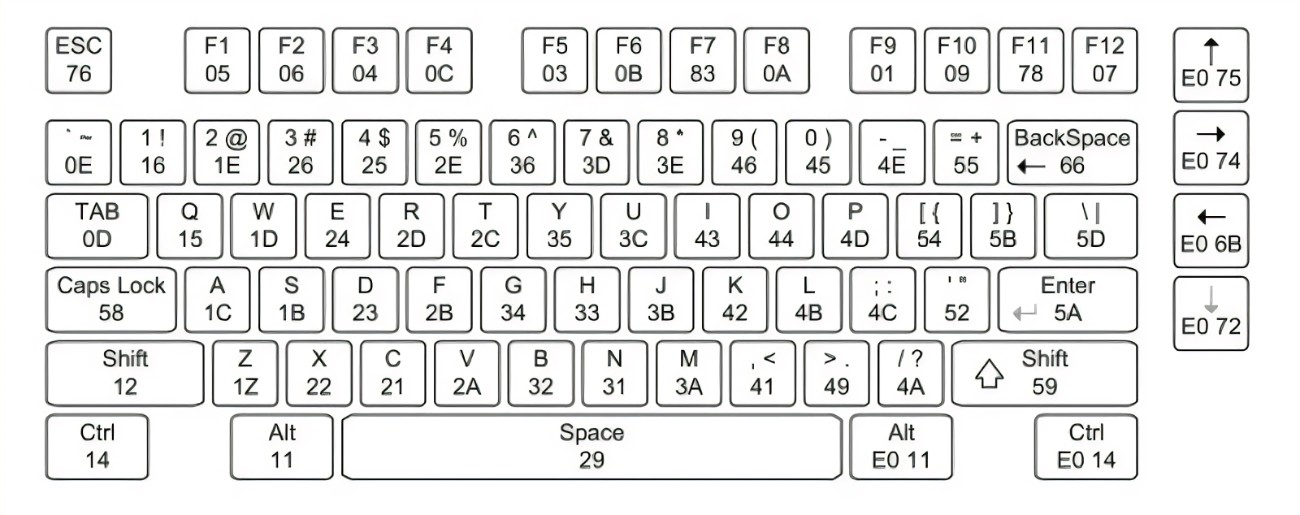

PS/2 键盘
模块参考代码
| module PS2(
input clk, rst,
input ps2_clk, ps2_data,
output reg up, left, right, down ,enter
);
reg ps2_clk_falg0, ps2_clk_falg1, ps2_clk_falg2;
wire negedge_ps2_clk = !ps2_clk_falg1 & ps2_clk_falg2;
reg negedge_ps2_clk_shift;
reg [9:0] data;
reg data_break, data_done, data_expand;
reg[7:0]temp_data;
reg[3:0]num;
always@(posedge clk or posedge rst)begin
if(rst)begin
ps2_clk_falg0<=1'b0;
ps2_clk_falg1<=1'b0;
ps2_clk_falg2<=1'b0;
end
else begin
ps2_clk_falg0<=ps2_clk;
ps2_clk_falg1<=ps2_clk_falg0;
ps2_clk_falg2<=ps2_clk_falg1;
end
end
always@(posedge clk or posedge rst)begin
if(rst)
num<=4'd0;
else if (num==4'd11)
num<=4'd0;
else if (negedge_ps2_clk)
num<=num+1'b1;
end
always@(posedge clk)begin
negedge_ps2_clk_shift<=negedge_ps2_clk;
end
always@(posedge clk or posedge rst)begin
if(rst)
temp_data<=8'd0;
else if (negedge_ps2_clk_shift)begin
case(num)
4'd2 : temp_data[0]<=ps2_data;
4'd3 : temp_data[1]<=ps2_data;
4'd4 : temp_data[2]<=ps2_data;
4'd5 : temp_data[3]<=ps2_data;
4'd6 : temp_data[4]<=ps2_data;
4'd7 : temp_data[5]<=ps2_data;
4'd8 : temp_data[6]<=ps2_data;
4'd9 : temp_data[7]<=ps2_data;
default: temp_data<=temp_data;
endcase
end
else temp_data<=temp_data;
end
always@(posedge clk or posedge rst)begin
if(rst)begin
data_break<=1'b0;
data<=10'd0;
data_done<=1'b0;
data_expand<=1'b0;
end
else if(num==4'd11)begin
if(temp_data==8'hE0)begin
data_expand<=1'b1;
end
else if(temp_data==8'hF0)begin
data_break<=1'b1;
end
else begin
data<={data_expand,data_break,temp_data};
data_done<=1'b1;
data_expand<=1'b0;
data_break<=1'b0;
end
end
else begin
data<=data;
data_done<=1'b0;
data_expand<=data_expand;
data_break<=data_break;
end
end
always @(posedge clk) begin
case (data)
10'h05A:enter <= 1;
10'h15A:enter <= 0;
10'h272:down <= 1;
10'h372:down <= 0;
10'h275:up <= 1;
10'h375:up <= 0;
10'h26B:left <= 1;
10'h36B:left <= 0;
10'h274:right <= 1;
10'h374:right <= 0;
endcase
end
endmodule
|
调用如下:
| PS2 ps2_unit(
.clk(clk), .rst(0),
.ps2_clk(PS2_clk), .ps2_data(PS2_data),
.up(up), .left(left), .right(right),
.down(down),.enter(NewReset));
|
Hold 模块
由于键盘按下去产生的信号是瞬时性的，有时候我们需要对这个信号进行保持，使得其在下一次按键前都保持不变
| module key_hold(
input clk,
input up,
input left,
input right,
input down,
input reset,
output reg up_hold,
output reg left_hold,
output reg right_hold,
output reg down_hold
);
reg [3:0] last_key = 4'b0000; // 使用4位寄存器存储上一个按键的状态
always @(posedge clk) begin
// 检查是否有按键被按下
if (up == 1) last_key <= 4'b0001;
else if (left == 1) last_key <= 4'b0010;
else if (right == 1) last_key <= 4'b0100;
else if (down == 1) last_key <= 4'b1000;
if(reset) last_key <= 4'b0000;
// 根据last_key的值设置输出
case (last_key)
4'b0001: begin
up_hold <= 1; left_hold <= 0; right_hold <= 0; down_hold <= 0;
end
4'b0010: begin
up_hold <= 0; left_hold <= 1; right_hold <= 0; down_hold <= 0;
end
4'b0100: begin
up_hold <= 0; left_hold <= 0; right_hold <= 1; down_hold <= 0;
end
4'b1000: begin
up_hold <= 0; left_hold <= 0; right_hold <= 0; down_hold <= 1;
end
default: begin
up_hold <= 0; left_hold <= 0; right_hold <= 0; down_hold <= 0;
end
endcase
end
endmodule
|
约束文件
| set_property PACKAGE_PIN N18 [get_ports PS2_clk]
set_property IOSTANDARD LVCMOS33 [get_ports PS2_clk]
set_property PACKAGE_PIN M19 [get_ports PS2_data]
set_property IOSTANDARD LVCMOS33 [get_ports PS2_data]
|
