CH 9 : Relations

约 2269 个字 预计阅读时间 11 分钟

9.1 Relations and Their Properties

定义

A binary relation(二元关系) R from set \(A\) to set \(B\) is a subset of \(A\times B\)

Note

A binary relation R is a set

\(R\subseteq A\times B\)

\(R=\{(a,b)|a\in A ,b\in B ,aRb\}\)

Functions As Relations

The graph of function 是从A到B的一个relation，但是relation不一定是function，因为一个x可能对应多个y

A relation of set A is a relation from A to A.

表示方式

• list its all ordered pairs 列举所有pairs
• using a set build notation/specification by predicates 利用条件语句的set
• 2D Table
• Connection Matrix / Zero-one Matrix
• Digraph

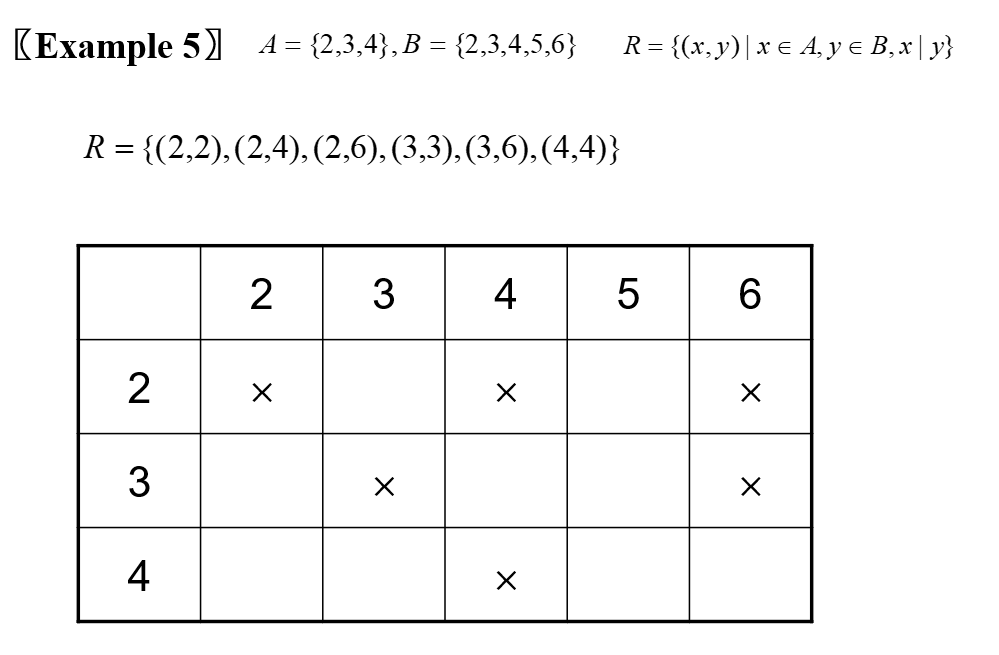

2D Table

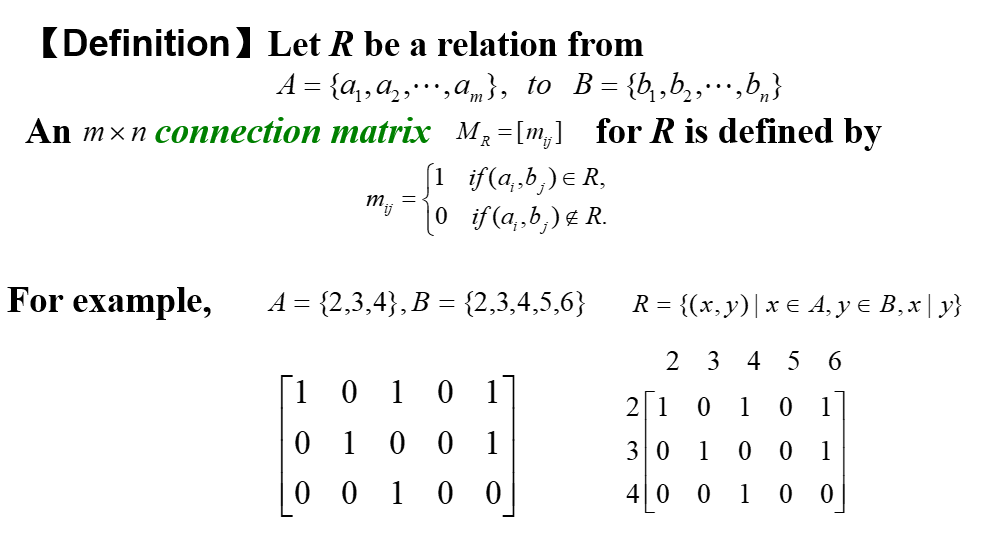

Connection Matrices

因此，binary relations on a set A with n elements 共有\(2^{n^2}\)个

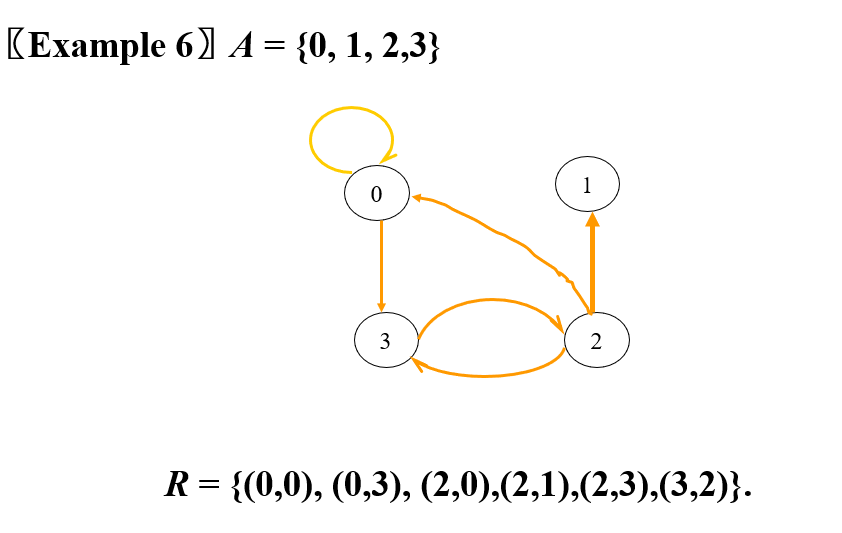

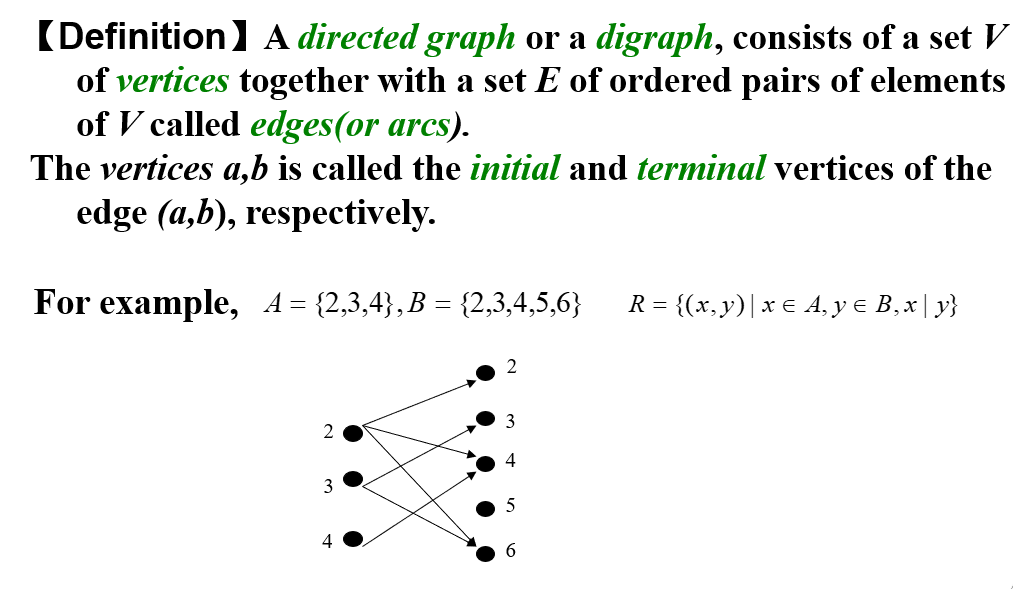

Digraph

Example

Special Properties of Binary Relations

• Reflexive 自反性
• Irreflexive 反自反性
• Symmetric 对称性
• Antisymmetric 反对称性
• Transitive 传递性

【Definition】 A relation R on a set A is reflexive if

\[ \forall x(x\in A\to (x,x)\in R) \]

即对于任意 \(A\) 中元素，\((x,x)\) 都在 \(R\) 中。

因此，若用矩阵表示，矩阵正对角线应当全部为1；若用有向图表示，每个vertex都应该有个loop指向自己。

自反关系个数为 \(2^{n ^2-n}\)

【Definition】 A relation R on a set A is irreflexive if

\[ \forall x(x\in A \to (x,x)\notin R) \]

对于任意 \(A\) 中元素，\((x,x)\) 都不在 \(R\) 中。

因此，若用矩阵表示，矩阵正对角线应当全部为0；

存在relation既不是reflexive也不是irreflexive

反自反关系个数为\(2^{ n^2-n}\)

因此既不是自反，也不是反自反的 relation 共有\(2^{n ^2} - 2*2^{ n^2-n}\) 个

【Definition】 A relation R on a set A is symmetric if

\[ \forall x\forall y((x,y)\in R\to(y,x)\in R) \]

用矩阵表示，则矩阵关于对角线对称。

对称关系的个数为\(2^n \cdot 2^{\frac{ n^2-n}{2}} = 2^{\frac{ n^2+n}{2}}\)

【Definition】 A relation R on a set A is antisymmetric if

\[ \forall x\forall y((x,y)\in R \land (y,x)\in R \to x=y) \]

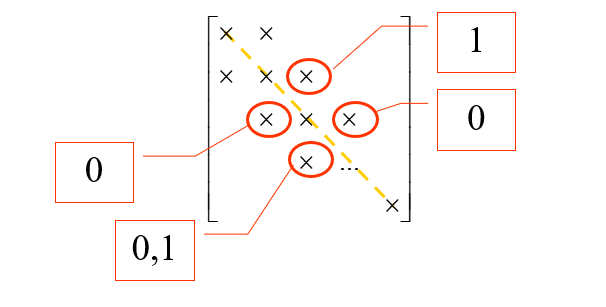

注意，只是关于对角线不存在两个都为 1 的情况，\((0,1)\) 是允许的

因此，也可以这样表示关系:

\[ \forall x\forall y((x,y)\in R\land x\ne y\to (y,x)\notin R) \]

反对称关系的个数为 \(2^ n\cdot 3^{\frac{ n^2-n}{2}}\)

【Definition】 A relation R on a set A is transitive if

\[ \forall x\forall y\forall z((x,y)\in R\land (y,z)\in R\to (x,z)\in R) \]

用 \(m_{ij}\) 表示矩阵第 i 行第 j 列的值，则有 \(\overline{m_{ij}\land m_{jk}}\lor m_{ik}=1\)

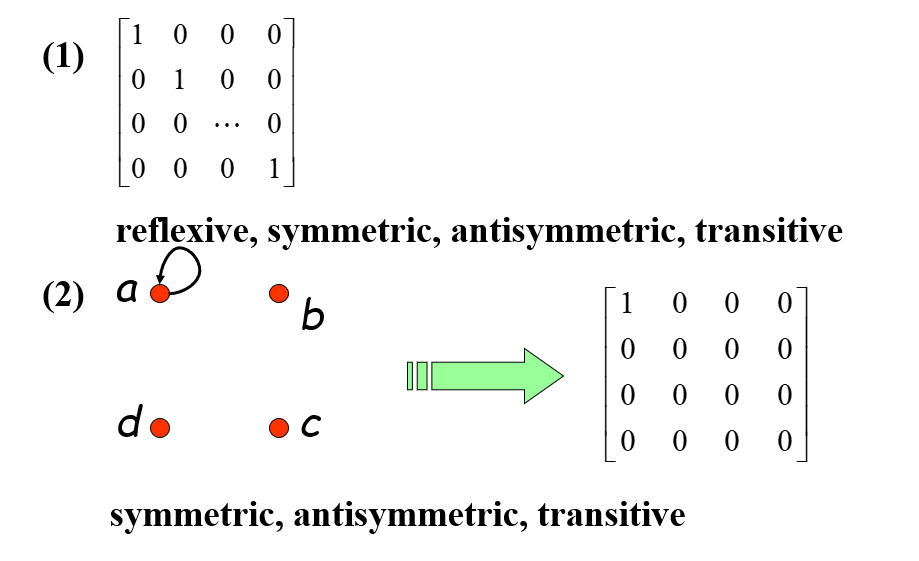

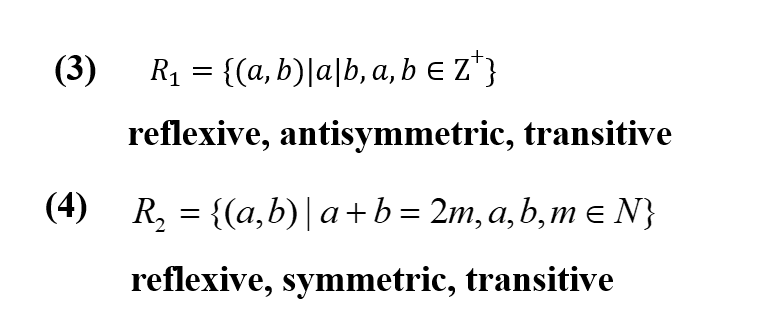

判别特征的例子

由symmetric和transitve不能推导出reflexive

Combining Relations

• Set operation
• Composition
• Inverse relation

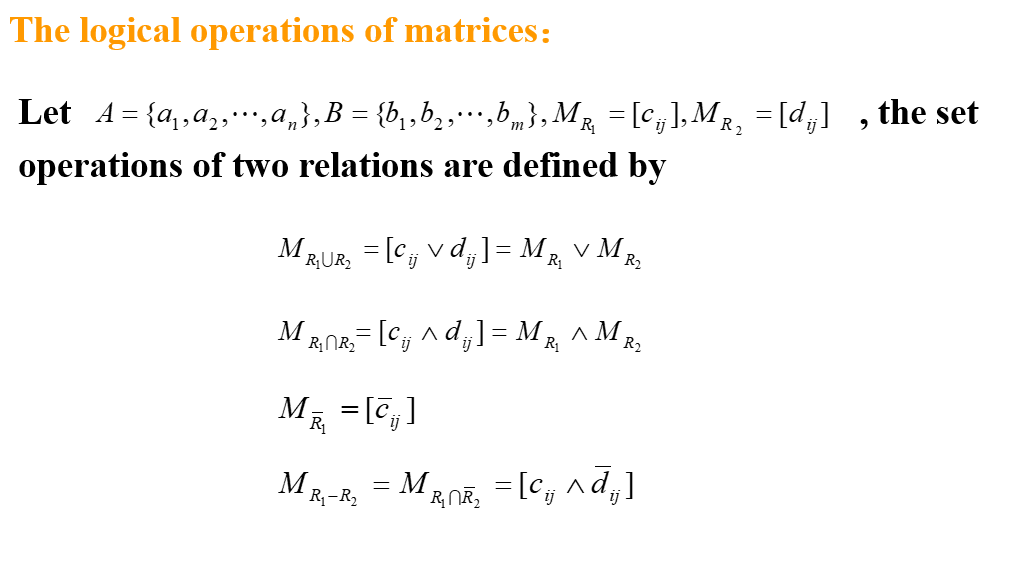

Set operation

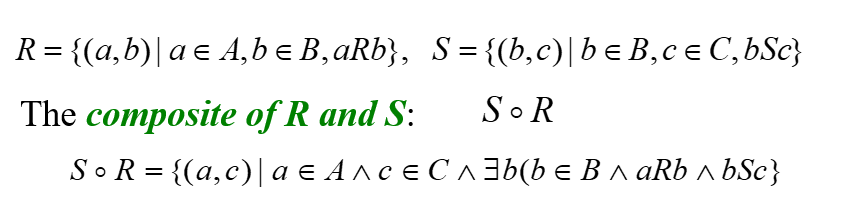

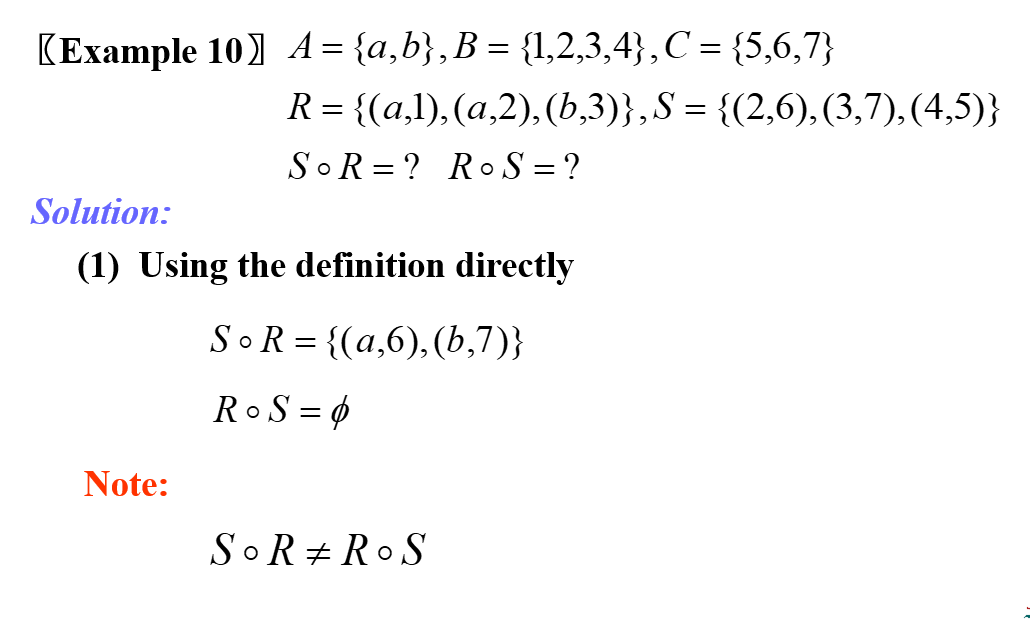

Composition

注意，R是前面那个

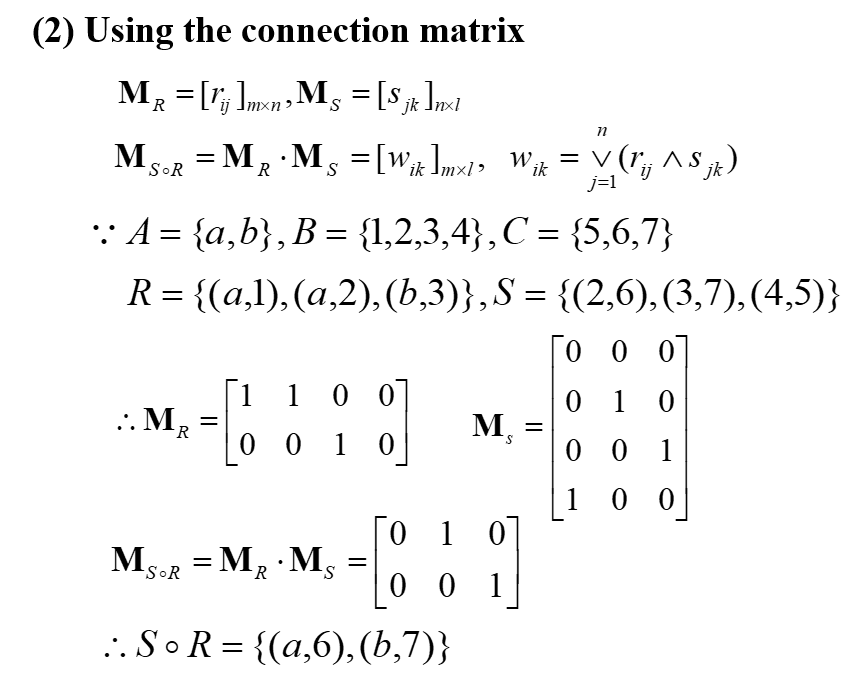

利用矩阵乘法可以求Composition

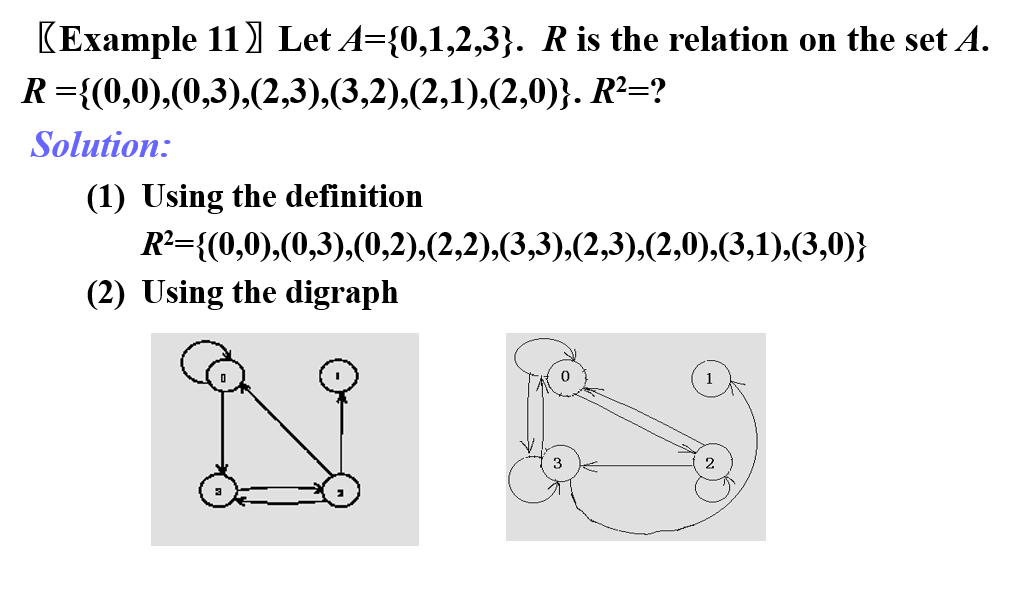

利用有向图求Composition

Definition Let R be a relation on the set A. The powers \(R^n,n=1,2,3,...\) are defined recursively by

\[ R^1 =R,and\ R^{n+1}= R^n\circ R \]

Theorem The relation R on a set A is transitive if and only if \(R^n\subseteq R,for \ n=1,2,3,...\)

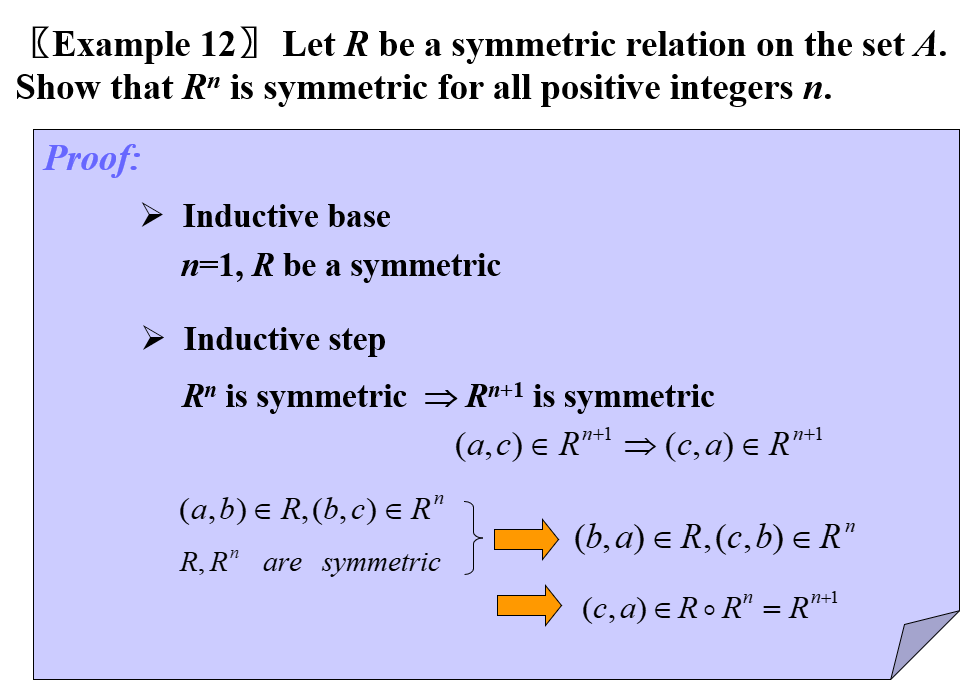

对称关系的n次方还是对称的

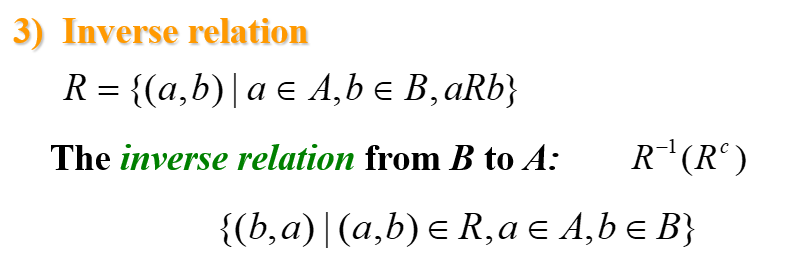

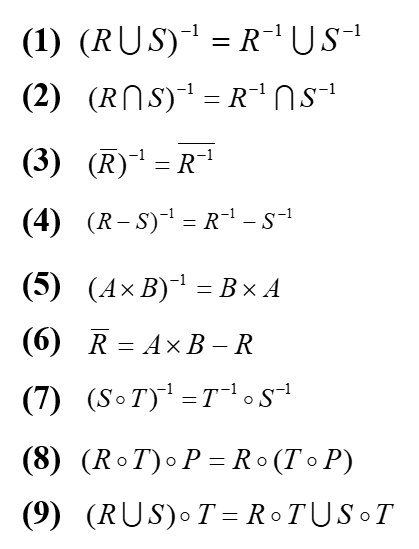

Inverse relation

9.4 Closures of Relations

• Reflexive Closure
• Symmetric Closure
• Transitive Closure

Definition The closure of relaitons R with respect to property P is the relation S with respect to property P containing R such that S is a subset of every relation with property P containing R.

关系R关于性质P的闭环，就是一个具有性质P且包含R的最小关系S。

Reflexive Closure

Theorem Let R be a relation on A . The reflexive closure of R , denoted by \(r(R)\) , is \(R\cup I_A\ \ I_A=\{(x,x)|x\in A\}\)

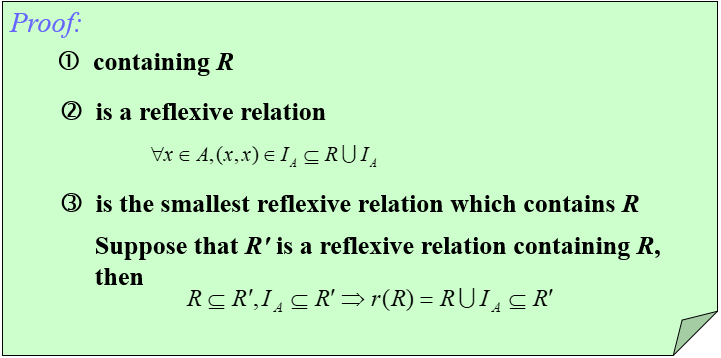

证明需要证明Closure的三个性质

1. 包含R 2. 是Reflexive的关系 3. 是包含R的最小Reflexive关系

• 用集合表示的话，就是往R里面加入所有不在R内的\((a,a)\ where\ a\in A\)
• 用有向图表示的话，则是给每一个Vertex添加loop
• 用connection matrix表示则在主对角线上全置1

Example

Question： \(R=\{(a,b)|a<b,a,b\in Z\}\) what is \(r(R)\)?

\(r(R)=R\cup I_A =\{(a,b)|a<b,a,b\in Z\} \cup \{(a,a)|a\in Z\}\)

\(=\{(a,b)|a\le b,a,b\in Z\}\)

Symmetric Closure

Theorem Let R be a relation on A . The symmetric closure of R , denoted by \(s(R)\) , is \(R\cup R^{-1}\)

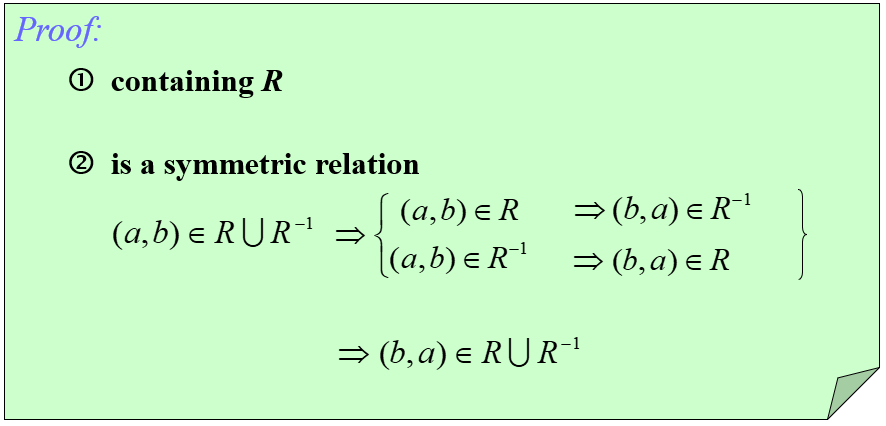

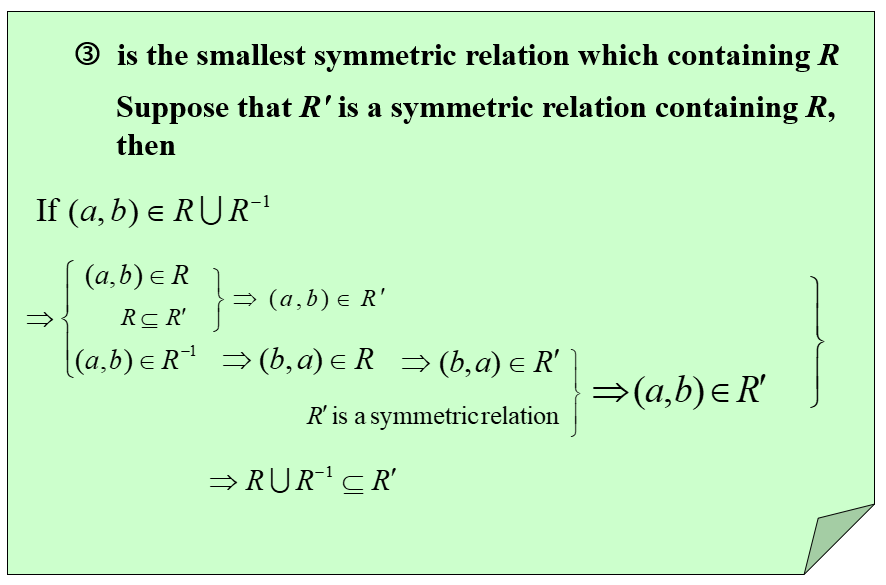

证明需要证明Closure的三个性质

1. 包含R 2. 是Symmetric的关系 3. 是包含R的最小Symmetric关系

• 用集合表示的话，如果\((a,b)\)在R内且\((b,a)\)不在R内，则加上
• 用有向图表示的话，如果存在一个edge从 y 到 x，再加上一个从 x 到 y 的edge
• 用connection matrix表示则 \(M_{s(R)} =M_R \lor M_R^T\)

Transitive Closure

先导知识:

• 有向图中一段长度为n的path可以用sequence表示:\((x_0 ,x_1),( x_1, x_2),...,(x_{n-1} ,x_{n})\)
  • 也可以简写成 \(x_0 ,x_1 ,x_2 ,...,x_{n-1} ,x_{n}\)
• 如果 \(x_0= x_n\ (n\ge 1)\)，则称这条path为 Cycle 或者 Circuit
  • \(|A|=n\Rightarrow Any\ path\ of\ length\ >n\ must\ contain\ a\ cycle\)

Theorem Let R be a relation on A . There is a path of length n from a to b if and only if \((a,b)\in R^n\)

可以用数学归纳法证明： \((a,x)\in R\ ,\ (x,b)\in R^{n-1} \Rightarrow (a,b)\in R^{n}\)

Definition The connectivity relation denoted by \(R^*\) , is the set of ordered pairs (a,b) such that there is a path (in R) from a to b : \(R^* =\bigcup_{n=1}^{\infty} R^n\) and \(t(R)=R^*\)

Corollary If \(|A|=n\) , then \(t(R)=R^* =R\cup R^2\cup ...\cup R^n\)

9.5 Equivalence Relations

Definition A relation R on a set A is an equivalence relation if R is :

• reflexive
• symmetric
• transitive

等价关系例子

(1) \(\{(a,b)|a+b=2m,a,b,m\in N\}\)

(2) The similarity relation between two triangles

(3) The equvalent relation between two fomulas in proposition logic

If R is an equvalence relations and (a,b) in R , then we note that a~b ,which means a and b is equvalent .

Definition The set of all elements that are related to an element x of A is called the equivalent class of x (等价类)

Notation : \([x]_R\ \ [x]\)

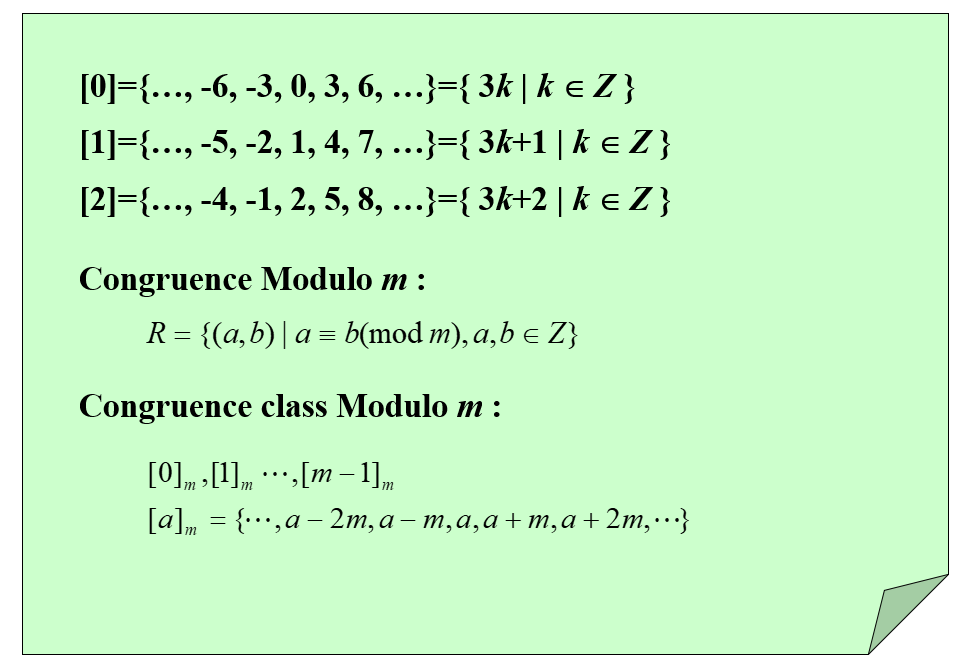

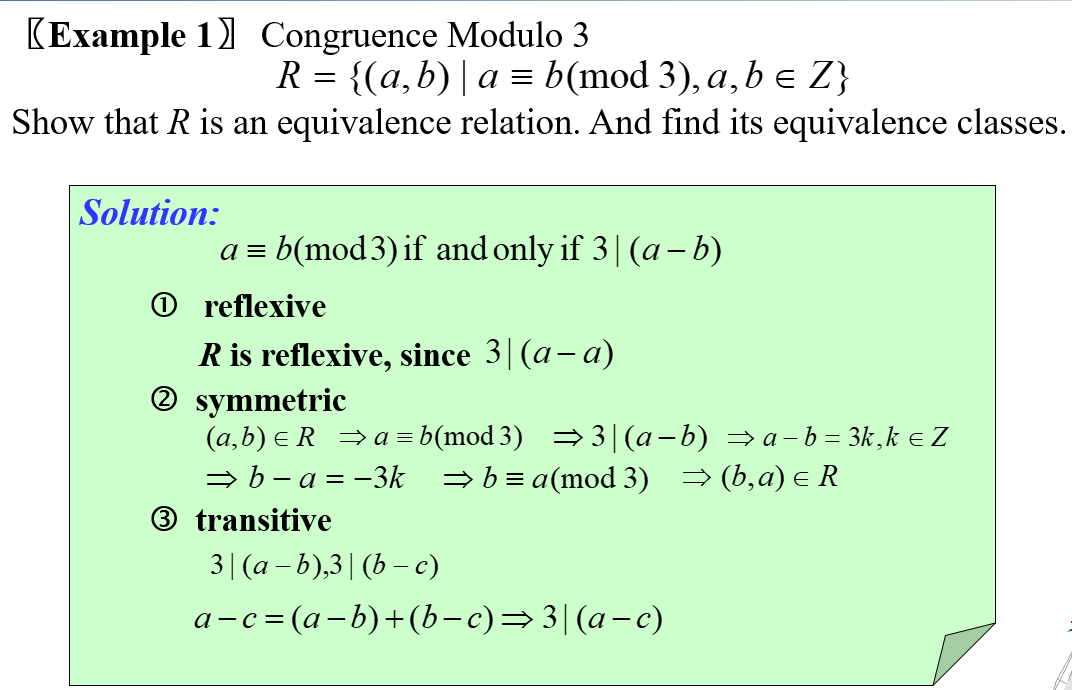

Example

Theorem 对于等价关系 R ，以下statements是等价的：

1. \(a R b\)
2. \([a]=[b]\)
3. \([a]\cap [b]\ne \emptyset\)

Definition A partition of set A is a collection of disjoint nonempty subsets of A that have A as their union

• \(A_i \ne \emptyset \ \ for\ i\in I(I\ is\ an\ index\ set)\)
• \(A_i \cap A_j=\emptyset,when\ i\ne j\)
• \(\bigcup _{i\in I} A_i =A\)

Notation: \(pr(A)=\{A_i|i\in I\}\)

集合的划分和等价类一一对应

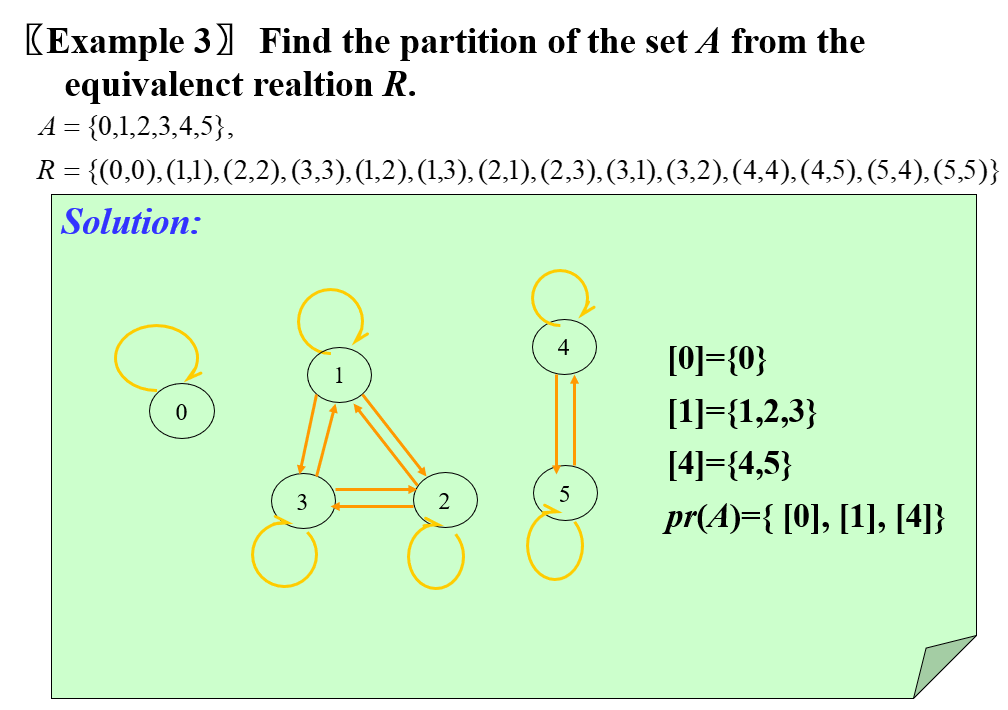

Example

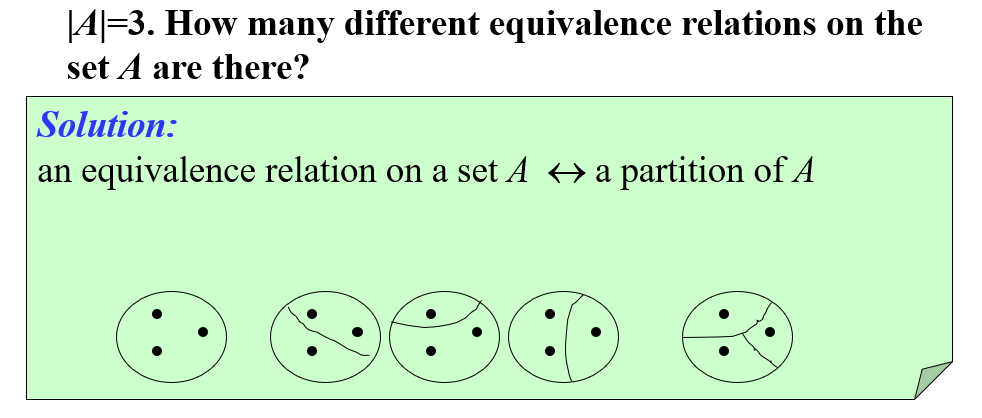

如何计算等价关系的最大个数？

• n元集合的等价类的个数 \(B_{n+1} =\sum _{k=0}^n C_n ^k B_k,where\ B_0= B_1=1,B_2=2\)
• 可以利用类帕斯卡三角形手算
  • 将1放在第一个位置
  • 每行三角形中最左边的值通过复制上一行中最右边的值。每行中的其余位置是左侧和左上方位置的两个值之和

    1  -B1
    1    2  -B2
    2    3    5  -B3
    5    7    10   15  -B4
    15   20   27   37   52  -B5
    52   67   87   114  151  203  -B6


Example

Properties

\(R_1\)和\(R_2\)是集合A上两个等价关系，则：

• \(R_1\cap R_2\) is equvalence relation on A
• \(R_1\cup R_2\) is reflexive and symmetric relation on A
• \(\overline{R_1\cup R_2}\) is equvalence relation on A

9.6 Partial Ordering

Definition A relation R on a set S is partial ordering or partial order if R is :

• reflexive
• antisymmetric
• transitive

Notation: (S,R) --- partial ordered set or poset , \(a\preceq b\) --- \((a,b)\in R\)

Info

\(\preceq\) precede or equal to 先于或等于 用latex打即 \preceq

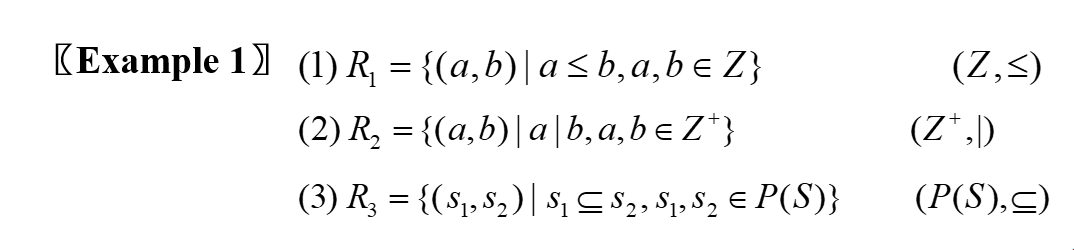

Example

如何计算偏序关系的最大个数？

• 画成Hasse Diagrams图进行分类计算
  • 按照层数不同进行分类
  • 如，一个含有三个元素的集合，最多含有 19 个偏序关系

Definition

• Comparable:
  • \(a,b\ of\ (S,\preceq),a\preceq b\ or\ b\preceq a\)
• Incomparable:
  • \(a,b\ of\ (S,\preceq),neither\ a\preceq b\ nor\ b\preceq a\)

如果Set S中任意两个元素都Comparable，那么称 \(\preceq\) 是 totally ordered (全序) or linearly ordered set .且 \((S,\preceq)\) 被称为 chain

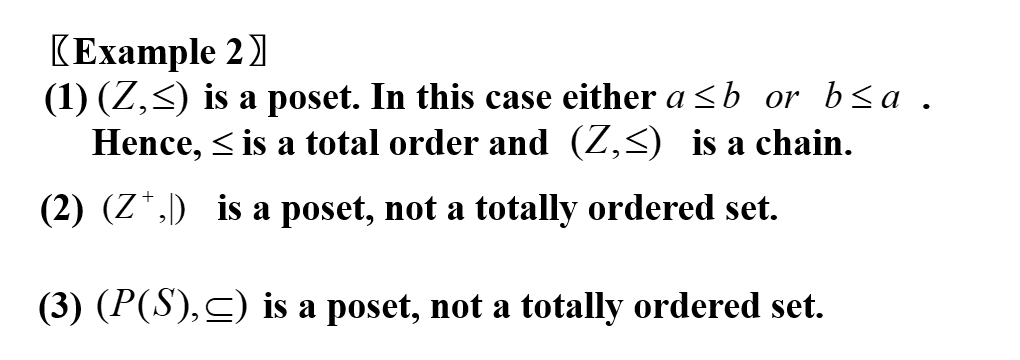

Example

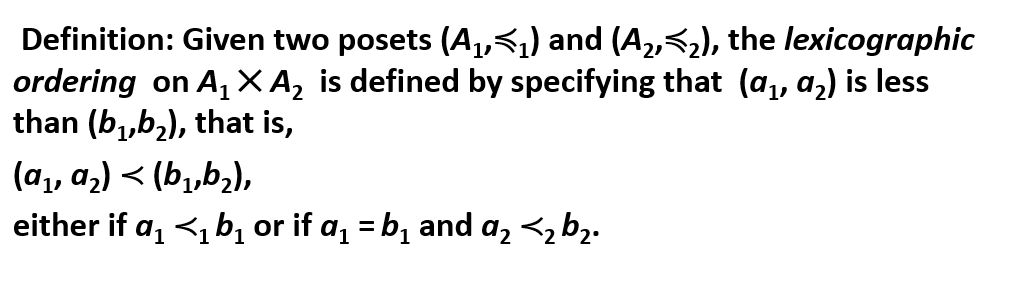

Lexicographic Order 字典序

导演剪辑版

将元素看作字符串里面的单个字符，比大小比的是\preceq

Theorem A lexicographic ordering on the Cartesian product of two posets is a partial ordering.

两个posets的叉乘的字典序还是posets

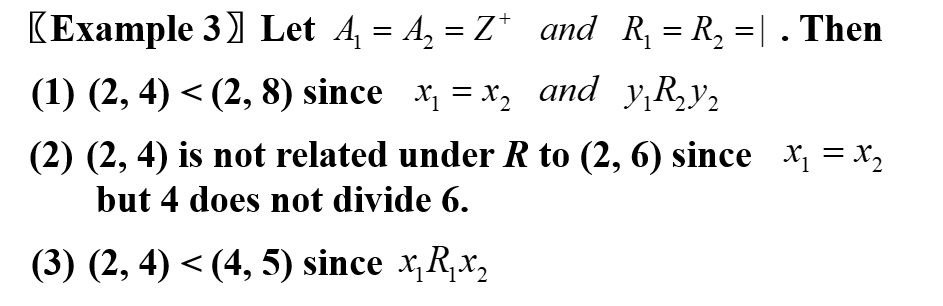

字典序例子

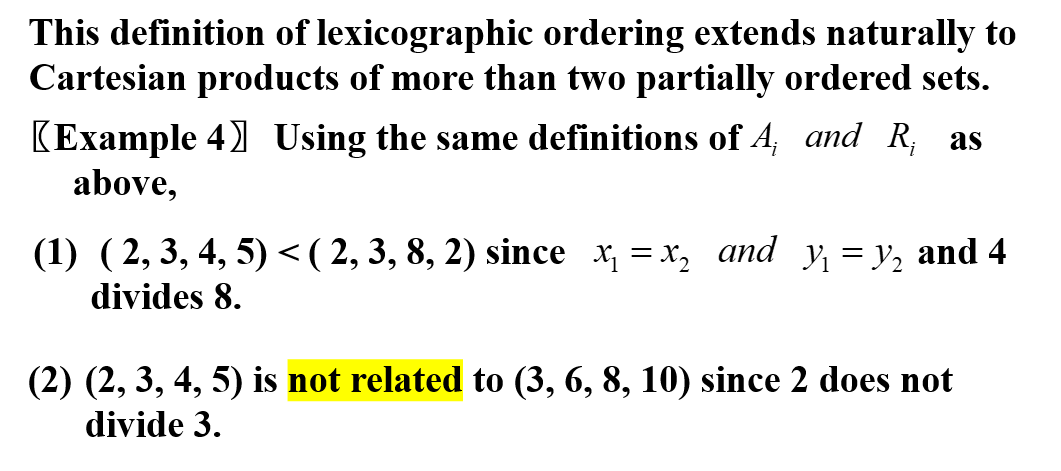

也可以延申为多个posets的笛卡尔积(Cartesian Products)

Hasse Diagrams 哈斯图

A method used to represent a partial ordering

How to obtain a Hasse Diagrams

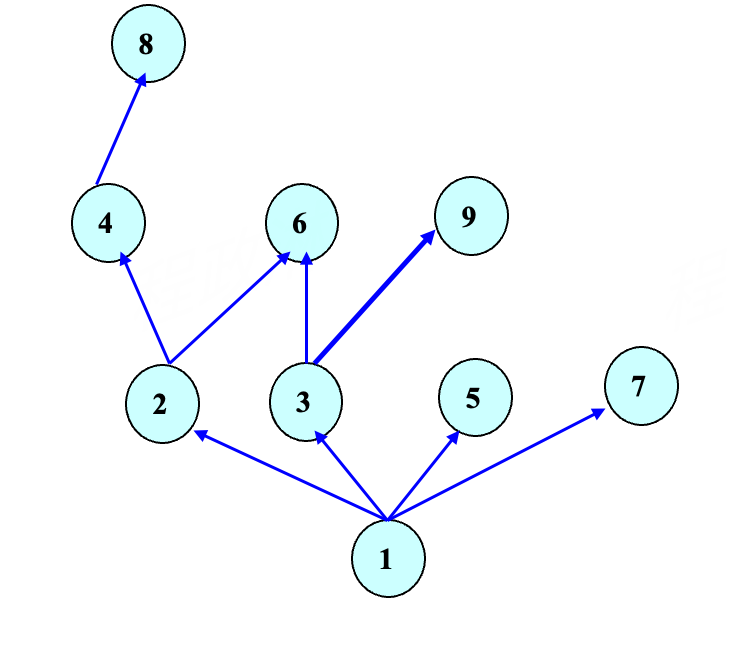

• \(A\ =\ \{1,2,3,4,5,6,7,8,9\},R\ =\ \{(a,b)|\ a|b,a,b\in A\}\)

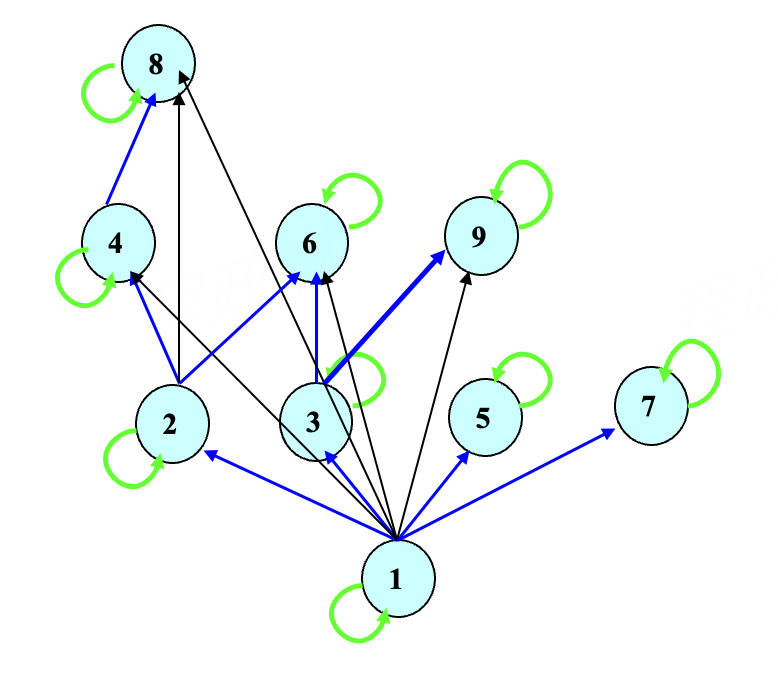

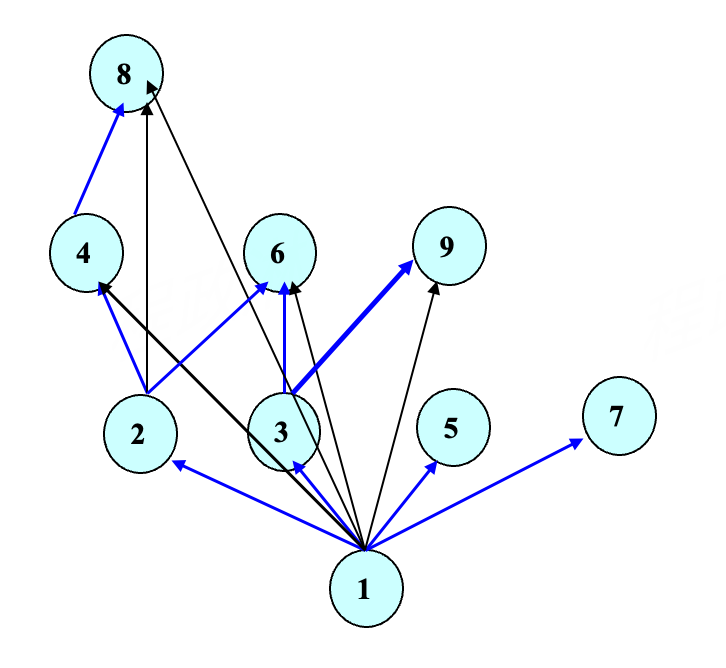

1.用有向图表示所有关系

2.删除自环

3.删除可以通过传递性得到的边

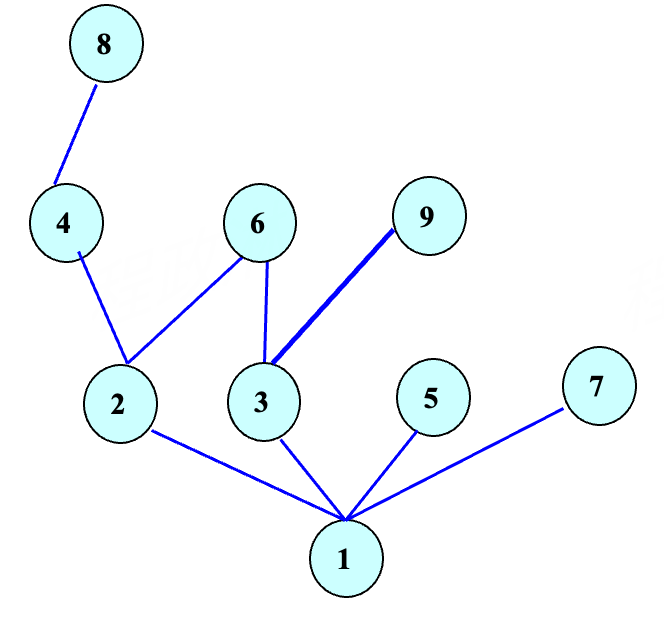

4.转为无向图

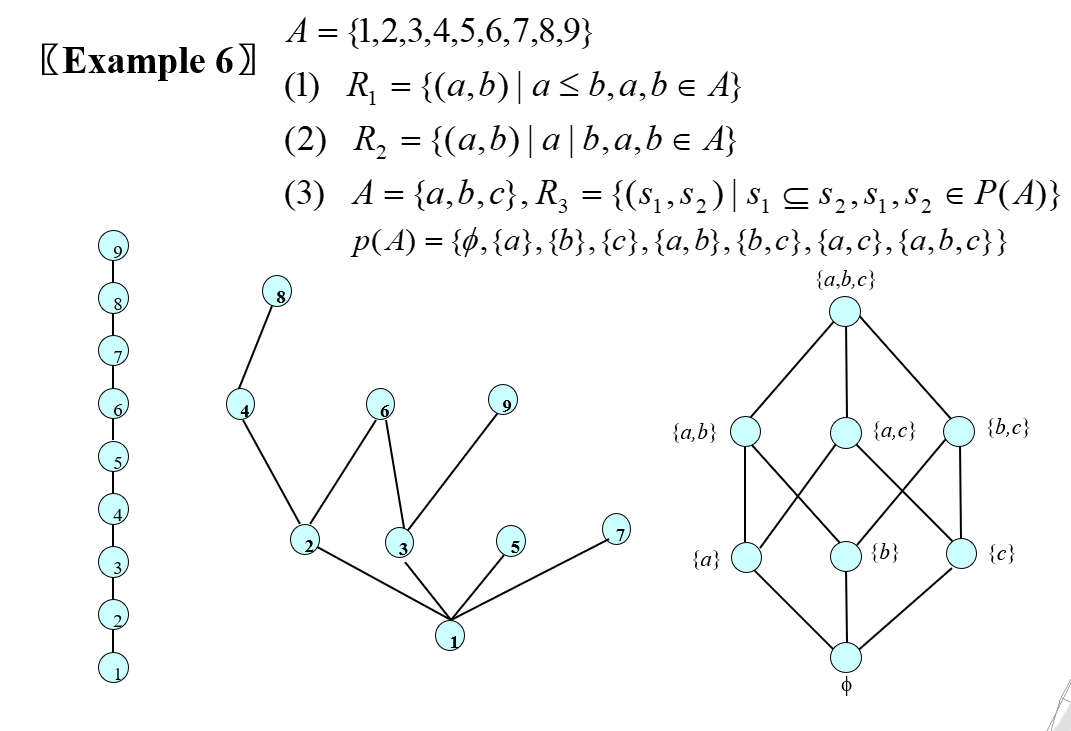

More Example

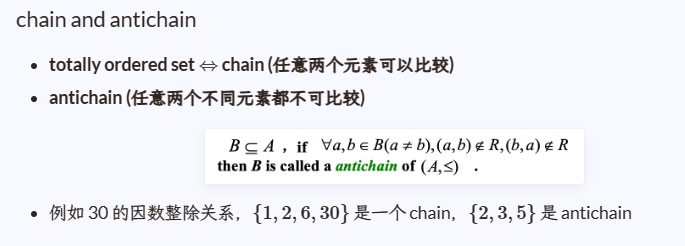

Chain and Antichain

不想写了，直接把学长的笔记截图过来

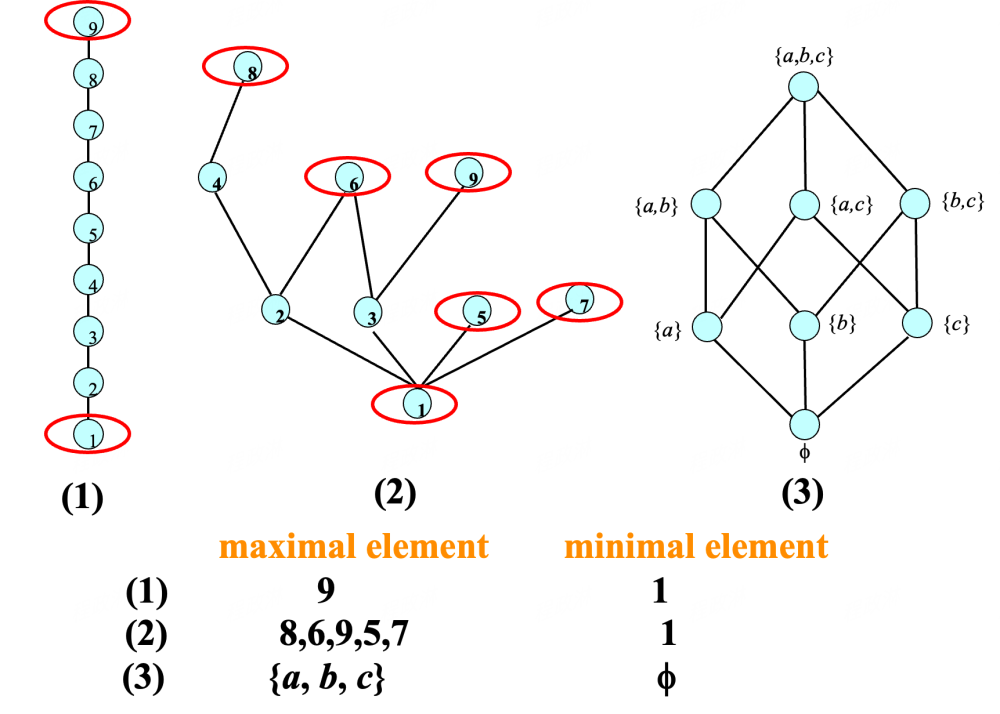

Maximal and Minimal Elements 极大值和极小值

Definition Let \((A,\preceq)\) be a poset . \(a\in A\) , then a is a maximal element if there does not exist an element b in A such that \(a\prec b\) .

Info

极大值和极小值就是Hasse Diagrams种最上面一层和最下面一层的元素

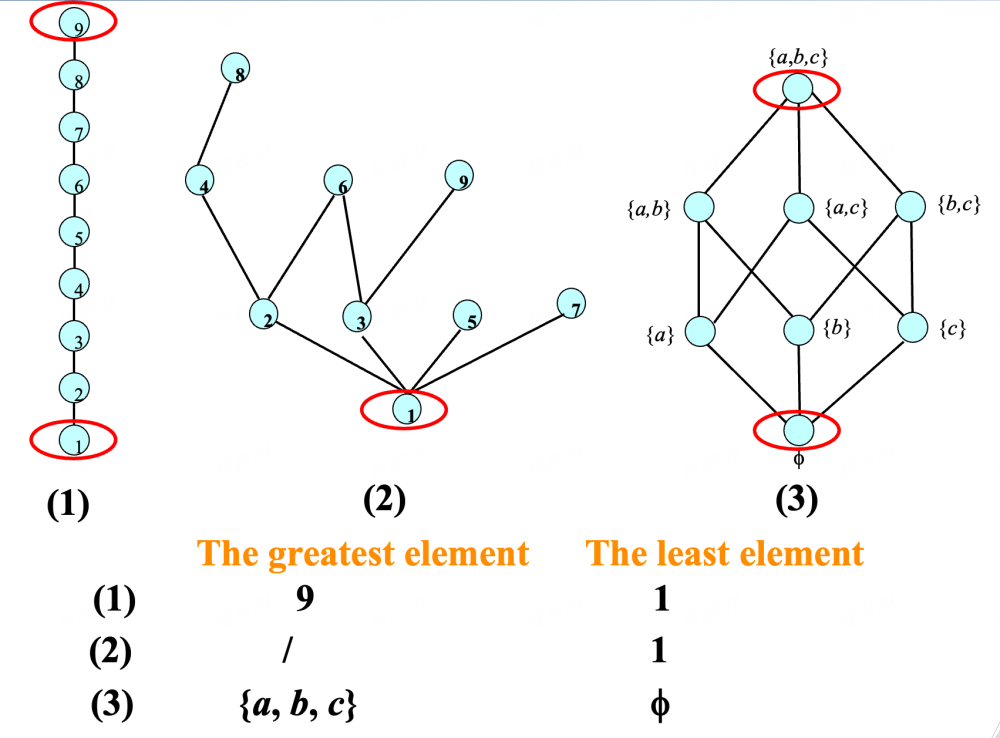

Greatest and Least Element 最大值和最小值

Definition Let \((A,\preceq)\) be a poset . \(a\in A\) , then a is a greatest element if \(b\preceq a\) for every b in A .

Info

如果最大值和最小值存在，则是唯一的。注意，最大值要求所有其它元素都preceq它，如上图（2）中 6 和 9 就不 preceq 8

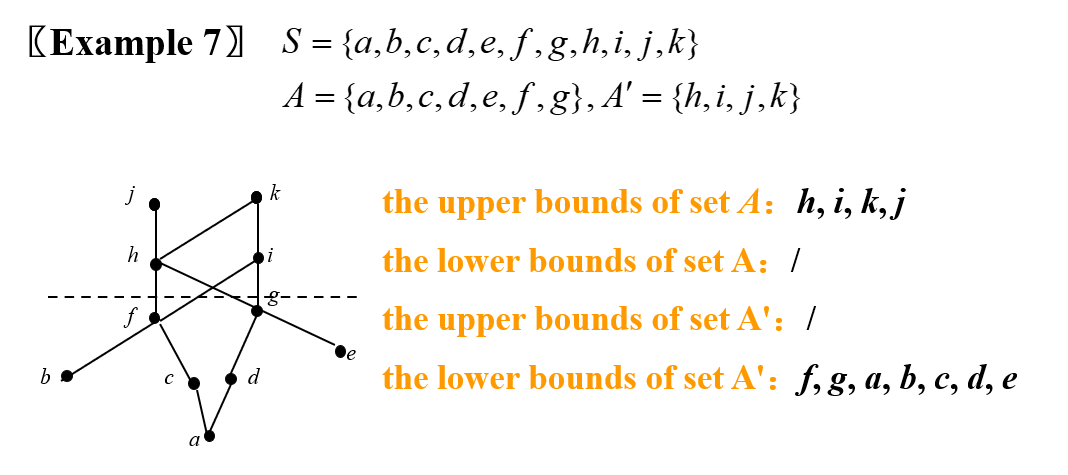

Upper and Lower Bounds 上下界

在此基础上还有 Least upper bound (记为lub(A))和 Greatest lower bound (记为glb(A))，字面意思指上下界中最大或最小的元素

Well-ordered Sets 良序集

Definition A poset(A,R) is well-ordered set if every nonempty subset of A has a least element .

A well-ordered set is a totally ordered set 良序则全序

Lattices 格

Definition 一个poset被称为lattices如果每对元素都有lub和glb

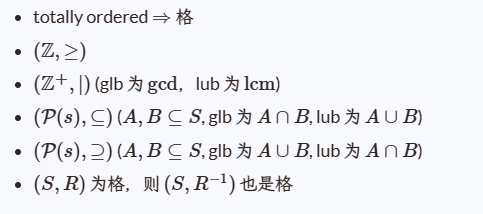

Info
